A fuel cap can be present but loose. A tank can look clean from a distance while a line above it is wet. An exhaust stack can stand upright even though a clamp, flex section, or lower joint is leaking. These are different conditions, but they belong in one disciplined inspection because fuel, exhaust heat, electrical wiring, vehicle structure, and the driver’s occupied space meet in the same part of many commercial vehicles.
This guide connects current federal rules with Pennsylvania’s inspection procedure. The sequence is simple: secure the vehicle, observe the area, identify the component, report facts, obtain authorized repair, and verify the result before driving.
Map the systems before inspecting them
Identify what the vehicle actually uses. A diesel tractor may have one or two fuel tanks, caps, vents, supply and return lines, crossover plumbing, and a separate diesel exhaust fluid tank. Another vehicle may use gasoline, compressed natural gas, liquefied petroleum gas, or a different configuration.
Do not apply one truck’s script to every vehicle
This article concentrates on the visible daily inspection of common liquid-fuel systems and exhaust equipment. Federal rules contain separate provisions for compressed natural gas and liquefied petroleum gas systems. If the training vehicle uses one of those fuels, learn that design and its approved inspection procedure from qualified instruction rather than adapting a diesel checklist.
Even two diesel tractors can route tanks, lines, exhaust, and aftertreatment differently. Follow installed components rather than an imaginary universal layout.
Connect each part with its job
The fuel system stores and delivers fuel without unsafe leakage, damage, or routing. The exhaust system directs combustion fumes to the required discharge location while remaining secure and separated from fuel, wiring, and combustible vehicle parts. The DEF system stores and supplies fluid used by applicable emissions aftertreatment; DEF is not diesel fuel. Naming the function prevents a student from confusing a fuel leak, DEF residue, engine oil, coolant, condensation, or exhaust soot.
Know the federal fuel-system baseline
The current provisions reviewed on October 28, 2026 are in 49 CFR Part 393, Subpart E. Section 393.65 applies to systems that contain or supply fuel for the motor vehicle or auxiliary equipment. Section 393.67 adds detailed construction and performance requirements for liquid-fuel tanks. A driver’s walkaround does not reproduce laboratory tank tests, but it can identify the visible conditions that require attention.
Location and secure installation
Section 393.65 restricts system location, including extension beyond the vehicle’s widest part and tanks forward of a power unit’s front axle. Spilled fuel must not contact exhaust or electrical systems except the level-indicator assembly; fill openings must be outside passenger and cargo compartments; and tanks must be securely attached.
A dry tank can still have an unsafe mount. Inspect straps, brackets, pads, guards, visible fasteners, displacement, fresh rub marks, and harmful contact.
Fuel-line routing and protection
Section 393.65 requires lines to accommodate normal component movement and be secured against chafing, kinking, and mechanical damage. Certain diesel lines below a tank or sump need impact protection. Follow accessible sections and check separation from edges, heat, moving parts, and the road.
Do not pull, twist, or bend a line to test it. Report unsupported spans, flattening, abrasion, wet fittings, damaged sleeves, or low routing and let authorized maintenance determine the repair.
Fill cap and tank details
Section 393.67 requires a liquid-fuel fill pipe to have a cap that can be fastened securely. The same section contains design requirements for vents, fittings, drains, fill pipes, and tank performance. The driver should verify the installed cap is present, fits the correct opening, and is secured. Do not open a cap to demonstrate security in a hot, contaminated, or unsafe area; follow the vehicle and carrier procedure.
Know the federal exhaust-system baseline
Section 393.83 requires a vehicle that can expel harmful combustion fumes to have a system directing those fumes. No part may be located where it is likely to burn, char, or damage electrical wiring, the fuel supply, or another combustible vehicle part. The exhaust may not discharge immediately below a fuel tank or filler pipe.
Outlet location and occupied-space protection
For trucks and truck tractors, the federal rule requires discharge behind the cab or, if the exhaust projects above the cab, near the rear of the cab. The system may not leak or discharge forward of or directly below the driver or sleeper compartment. Bus requirements vary by fuel and outlet position, so passenger-vehicle students must learn the provisions applicable to their vehicle.
Secure mounting, leakage, and temporary patches
The system must be securely fastened. Hangers may allow necessary movement caused by heat expansion and movement between the engine and chassis, so controlled movement is not automatically a defect. However, missing hangers, separated joints, contact with another part, or an outlet no longer held in its intended position require evaluation.
Section 393.83 prohibits temporary repair of an exhaust-system part with wrap or patches. It also prohibits prohibited leakage or discharge near the driver or sleeper space. Carbon soot around a joint, a changed exhaust sound, visible movement, heat damage, or an exhaust smell can be important clues, but the driver should describe the clue rather than claim a crack that cannot be seen.
Set up a safe inspection
Secure, cool, and ventilate
Park on a suitable level surface, set the parking brake, position the transmission as instructed, and use required wheel chocks. Keep the engine off unless a supervised step requires operation. Never touch exhaust parts to judge temperature or security.
Do not run a vehicle in an enclosed area to search for an exhaust leak. Use a properly ventilated location and the school, carrier, or maintenance procedure. Avoid open flames, smoking, sparks, and electrical improvisation around fuel. If an active leak or strong fuel odor is present, stop the inspection, keep people clear, notify the responsible person, and follow the site’s emergency process.
Look broadly before moving closer
From a safe distance, look for a puddle, drip pattern, wet pavement, stained tank, loose strap, low-hanging line, displaced shield, or exhaust component leaning toward the cab or fuel area. Note wind direction and odors without deliberately inhaling fumes. A broad view helps protect the inspector and preserves evidence before anyone wipes or moves a component.

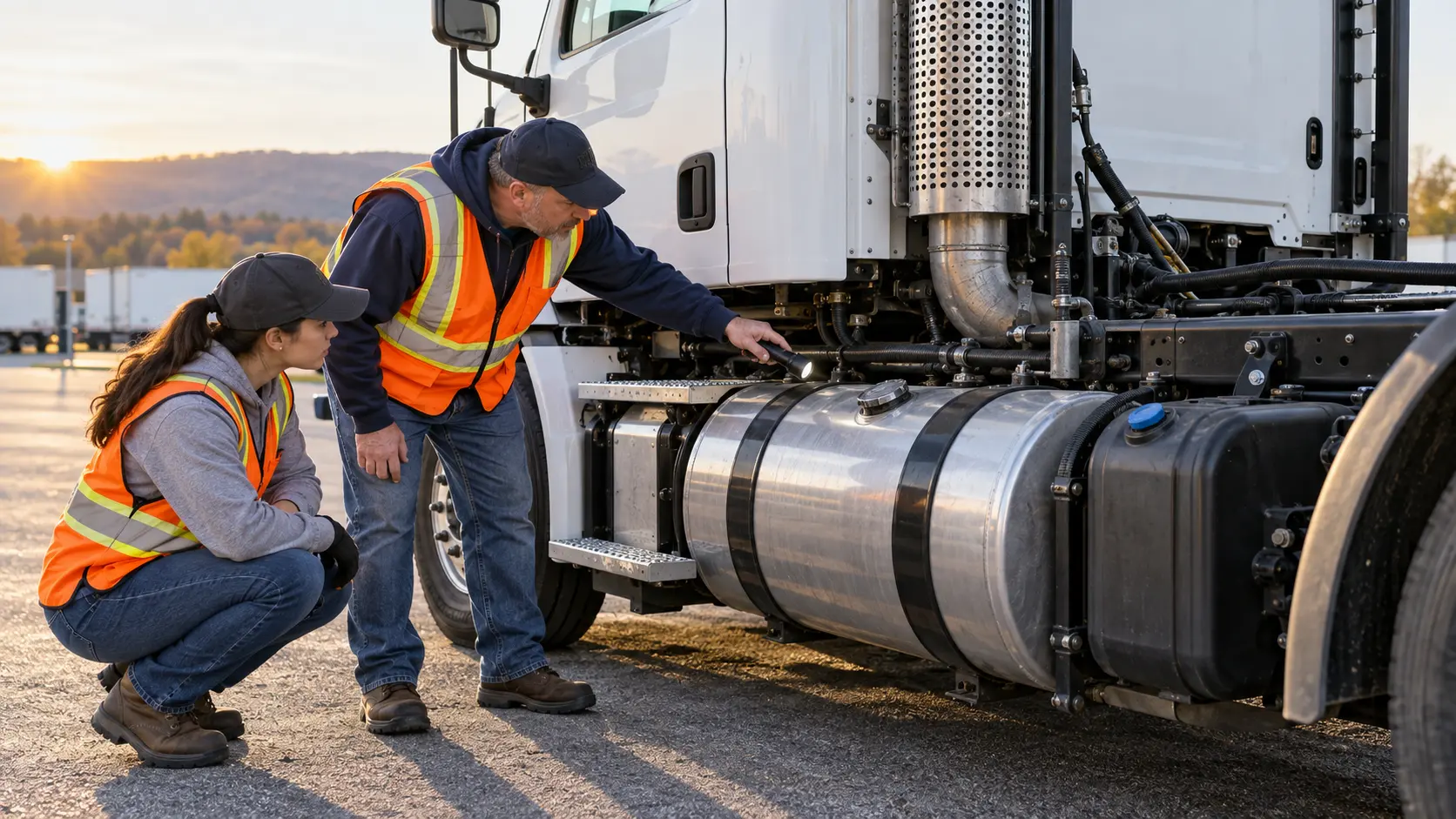

Inspect the fuel tank, cap, mounts, and lines
Tank body and mounting
Inspect the visible tank surface for dents, cracks, abrasion, corrosion, impact damage, wetness, or fresh stains. Confirm that mounting straps, brackets, supports, and visible fasteners are present and secure. Check that steps or fairings attached near the tank do not hide damage or place abnormal load on the tank. Never enter a pinch point or crawl under an unsupported vehicle for a better view.
Compare the tank with its normal position on the vehicle. A shiny rub mark, shifted pad, polished edge, or fresh paint loss can show movement even when the tank is currently dry. Report the evidence and exact location; do not tighten a strap or decide the tank is structurally sound without authorization.
Cap, filler area, and spillage clues
Verify the cap is on the correct fill opening and fastened. Inspect the filler neck and area below it for fresh wetness, staining, damage, or a seal problem visible without removing the cap. A small amount of old road grime differs from a fresh trail beginning at the cap. Record whether the condition appeared before or after fueling and whether liquid reached a step, wiring, exhaust shield, tire, or pavement.
Visible lines, fittings, and routing
Follow accessible supply, return, crossover, and auxiliary-equipment fuel lines. Look at fittings, clamps, sleeves, supports, and passages near frame edges or heat sources. Check for chafing, cracks, kinks, flattening, loose routing, unsupported weight, impact exposure, and fresh wetness. A clean line leading into a wet fitting is different from a wet line whose source is above the visible area; report what you can see.
On a dual-tank vehicle, inspect both sides and the visible crossover arrangement. Do not close a valve, loosen a fitting, or isolate a tank unless that action is part of an authorized procedure. The correct driver action is to recognize and locate the concern, prevent unsafe operation, and communicate it clearly.
Keep diesel fuel and DEF checks distinct
PennDOT Section 10M groups fuel tanks and DEF tanks in the external inspection. It directs applicants to verify that the tanks are securely mounted, caps are tight, and tanks and lines do not leak. The practical sequence can be similar, but the fluids and systems are not interchangeable. Identify the diesel fill and DEF fill correctly, especially when caps are close together.
Inspect the DEF area without diagnosing aftertreatment
Check the DEF tank, mount, cap, visible lines, and surrounding area for security, damage, leakage, or dried residue. Observe the DEF dashboard indicator during the required internal check when equipped. A warning, residue, or leak should be reported using the vehicle’s procedure; it does not authorize the student to reset controls, defeat an emissions system, substitute another fluid, or predict when the engine will derate.
Use exact language: “white crystalline residue below the DEF cap” is more useful than “fuel leak,” while “clear liquid dripping from a line above the DEF tank” should remain unidentified until the source is established. Color and odor can provide context, but they are not a safe substitute for qualified identification.
Follow the exhaust system from source to outlet
Inspect visible joints, flex sections, shields, and hangers
From safe positions, follow the accessible route from the engine area through pipes, flex sections, aftertreatment housings, clamps, heat shields, hangers, and the outlet. Look for missing hardware, separated joints, cracks, holes, soot trails, loose shields, contact with fuel lines or wiring, and signs of heat damage. Maintain distance from any component that may still be hot.
Hangers and flex sections are designed to accommodate some movement. Do not classify normal design movement as looseness by shaking the system. Instead, observe whether a component is displaced, unsupported, striking another part, or leaving a visible rub or soot pattern.
Check outlet position and the cab area
Verify the outlet remains in its designed position behind or near the rear of the cab as applicable and is not discharging directly below the driver or sleeper compartment. Check for a missing or damaged section that changes the discharge point. On a bus, use the fuel-specific and body-specific outlet rules rather than copying the truck-tractor statement.
Use sound and smell as clues, not as the whole test
During an authorized, ventilated operational check, listen for a sharp ticking, puffing, or changed exhaust note and note whether it changes with engine speed. Do not place a hand near a joint to feel escaping gas. If exhaust odor appears in the cab or sleeper area, stop the check, move to fresh air, report the condition, and follow the emergency or maintenance process.
Turn observations into useful actions
| Observation | Useful report language | Safe next action |
|---|---|---|
| Fresh wet trail below fuel cap | Name unit, tank side, starting point of trail, time, and whether the truck was recently fueled | Keep ignition sources away; notify the responsible person and verify the cause before movement |
| Fuel line chafing on bracket | Identify line location, bracket, damaged sleeve or surface, and whether wetness is present | Do not reposition the line by hand; request authorized inspection and protection |
| Tank strap or bracket displaced | Record side, mount position, missing hardware, rub marks, and tank movement if observed without forcing it | Hold the vehicle for maintenance evaluation |
| White residue at DEF cap | Identify it as residue at the DEF fill area, not a confirmed diesel leak | Report, clean only by approved procedure, and verify cap and system condition |
| Black soot around exhaust joint | Give joint location, soot pattern, sound or odor, and whether the engine was running | Request qualified leak evaluation; do not wrap or patch the joint |
| Exhaust component near wiring or fuel line | Describe exact clearance, displaced shield or hanger, and visible heat damage | Do not operate until routing and protection are evaluated |
Worked scenario: wet fuel fitting and soot at a joint
Before an early lesson, a student inspects tractor 18 on level pavement. The left fuel tank and cap are dry, the straps appear secure, and the visible crossover line is supported. On the right side, the student finds fresh wetness at a return-line fitting above the tank. The liquid has formed a short trail but has not reached the pavement. A few feet behind it, the student also sees a black soot fan around an exhaust flex-joint clamp.
Keep two observations separate
The student does not wipe the fitting, tighten it, touch the exhaust, or start the engine for another look. The report states: “Tractor 18, right-side fuel area, fresh wetness centered at the visible return-line fitting above the tank; short downward trail, no pavement drip observed. Separate condition: black soot fan around the exhaust flex-joint clamp behind the cab. Vehicle held, instructor notified at 6:45 a.m.”
This wording does not claim the liquid is definitely diesel, name a failed seal, or prove the exhaust joint is cracked. It preserves location and evidence for qualified evaluation while recognizing that the two nearby conditions can involve different repairs.
Repair and verify the complete area
Authorized maintenance identifies and corrects the fuel fitting condition and exhaust joint problem. Before release, the system is checked through the maintenance procedure. The student then repeats the visual route: tank and cap, mounts, fitting and line, adjacent wiring, exhaust joint, shields, hangers, and outlet. Under supervision and in a ventilated area, the operational check shows no new wetness, soot discharge, abnormal sound, or exhaust odor.
If a fuel or exhaust concern creates an unsafe roadside stop, protect the scene using the separate roadside warning-device plan. Scene protection does not authorize a roadside fuel or exhaust repair by an unqualified driver.
Use clear skills-test language
PennDOT requires the applicant to identify and fully explain listed safety-critical items. For the tank area, a concise statement is: “The fuel and DEF tanks are securely mounted, the correct caps are tight, and there are no leaks from the tanks or visible lines.” Point to the actual components and adapt the words to the vehicle. Do not call DEF diesel fuel or claim a line was inspected if it was not visible.
The current Section 10M checklist specifically includes the fuel and DEF tanks. Exhaust-system knowledge still belongs in a complete operational inspection under federal rules even when it is not a separate line on the Pennsylvania checklist. The test checklist does not cover every federal inspection requirement.
Practice component identification beside the vehicle, not only from a diagram. The inspection-vocabulary guide explains how to connect a part’s name, location, function, condition, and spoken explanation without reciting unsupported details.
CDL fuel and exhaust inspection checklist
Before approaching the system
- Park on a suitable level surface, secure the vehicle, and use required chocks.
- Keep away from traffic, ignition sources, open flames, sparks, and smoking.
- Allow exhaust components to cool and never use touch as a temperature test.
- Identify the vehicle’s fuel type, tank layout, DEF equipment, and exhaust route.
- Look broadly for puddles, wetness, stains, odor, displaced parts, or heat damage.
Fuel and DEF areas
- Inspect every visible tank body for damage, corrosion, abrasion, and fresh wetness.
- Confirm straps, brackets, supports, pads, steps, guards, and visible fasteners are secure.
- Verify the correct cap is present and fastened on each fill opening.
- Inspect the filler area for fresh trails, spillage clues, damaged necks, or contact with wiring and exhaust.
- Follow accessible fuel lines and fittings for leakage, chafing, kinks, impact exposure, and support.
- Inspect both tanks and crossover plumbing on dual-tank configurations.
- Keep diesel and DEF observations separate; report residue, leaks, and indicator warnings precisely.
Exhaust area
- Follow visible pipes, flex sections, aftertreatment housings, joints, clamps, shields, and hangers.
- Look for holes, cracks, separation, soot trails, missing hardware, and temporary wrap or patches.
- Check clearance from fuel equipment, electrical wiring, and combustible vehicle parts.
- Verify the outlet remains secure and in its designed, compliant position.
- During authorized operation, note abnormal sound or odor without touching or inhaling near the system.
Before driving
- Report unit, side, component, exact condition, time, and whether the engine or fueling activity was involved.
- Do not diagnose, tighten, patch, reset, or clean a system without authorization.
- Hold the vehicle when a fuel leak, unsafe exhaust condition, damaged mount, or unresolved safety concern exists.
- After authorized repair, repeat the affected visual and operational checks.
- Document the result through the required inspection and maintenance process.
Frequently asked questions
Is diesel exhaust fluid the same as diesel fuel?
No. DEF is a separate fluid used by applicable emissions aftertreatment systems. Identify the diesel and DEF tanks and fill openings correctly, never substitute one fluid for the other, and report leaks or residue by exact location rather than calling every liquid a fuel leak.
Does black soot around an exhaust clamp prove the pipe is cracked?
No. Soot is a useful clue that requires qualified evaluation, but it does not by itself identify the failed part or exact opening. Report the joint, pattern, sound, odor, and operating condition without touching a hot system or forcing the joint to move.
Can a driver tighten a wet fuel-line fitting during a pre-trip?
Only if the driver is trained, authorized, and following the applicable maintenance procedure. A CDL student should stop, keep ignition sources away, report the exact fitting and condition, and allow qualified personnel to identify and correct the cause before the vehicle moves.
Should the fuel and exhaust areas be rechecked after repair?
Yes. Reinspect the corrected component, its mounting and routing, nearby wiring or hoses, shields, tank and cap, and the exhaust outlet as applicable. Complete any authorized operational check in a ventilated area and confirm the repair did not disturb an adjacent system.
